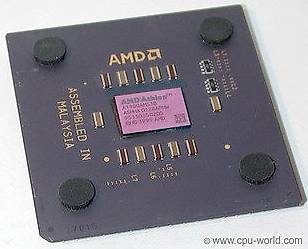

Processeur AMD Athlon A1100AMS3B

36.-

16.05.2026

2300, La Chaux-de-Fonds

The AMD Athlon 1100 was a desktop processor with 1 core, launched in August 2000. It is part of the Athlon Model 4 lineup, using the Thunderbird B architecture with Socket A. Athlon 1100 has 256K of L2 cache and operates at 1100 MHz. AMD is building the Athlon 1100 on a 180 nm production process using 37 million transistors. The multiplier is locked on Athlon 1100, which limits its overclocking capabilities.
With a TDP of 60 W, the Athlon 1100 consumes typical power levels for a modern PC. AMD processor supports DDR1 memory. This processor does not have integrated graphics, you will need a separate graphics card.
A lot of games will not work on this processor, because they require the SSE instruction set, which is not supported.

General information
Type CPU / Microprocessor OEM/tray
Market segment Desktop
Family AMD Athlon

Frequency 1100 MHz
Bus speed 200 MHz
Clock multiplier 11
Package 453-pin staggered ceramic PGA
AMD Package number 27016
Socket Socket A (Socket 462)
Introduction date 28-Aug-00
Price at introduction $853
Architecture / Microarchitecture
Microarchitecture K7
Processor core Thunderbird (Model 4)
CPUID 642
Manufacturing process 0.18 micron
37 million transistors
Die 120mm2
Data width 32 bit
The number of CPU cores 1
The number of threads 1
Floating Point Unit Integrated
Level 1 cache size 64 KB 2-way set associative instruction cache
64 KB 2-way set associative data cache
Level 2 cache size Full-speed on-die 256 KB 16-way set associative cache
Multiprocessing Uniprocessor
Extensions and Technologies

MMX instructions
Extensions to MMX
3DNow! technology
Extensions to 3DNow!

Low power features

Halt state
Stop Grant states
Sleep state
Probe state

Integrated peripherals / components
Integrated graphics None
Electrical / Thermal parameters
V core 1.75V
Minimum/Maximum operating temperature ? 0 - 95 °C
Minimum/Typical/Maximum power dissipation 5 Watt (Stop Grant mode) / 54.1 Watt / 60.3 Watt

Notes on AMD Athlon 1.1 GHz
Actual bus frequency is 100 MHz. Because the processor uses Double Data Rate bus the effective bus speed is 200 MHz.
