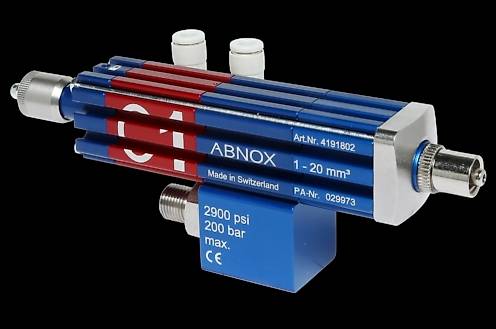

Volumetric Metering Valve AXDV-C1 (V3.0), LUER, NEW
900.-
11.05.2026
1786, Sugiez
Lubricant dispensing system, volumetric, pneumatic, 1 - 20 mm3.
Unused, in original package, with accessories.
Technical Data
Dosing range [cm3]
0.001 - 0.020
Lubricants up to NLGI 3 / max. 1'000'000 mPa.s
Min. / max. workingpressure medium inlet [bar]
20/200
Connection medium inlet internal thread
1/8'' BSP
Connection medium inlet external thread
1/8'' BSP
Connection medium outlet internal thread
M5 / With Dispensing Tip Adapter LUER-Connection
Compressed air quality
ISO 8573-1:2020 [6:4:4]
Optimum pneumatic operatingpressure [bar]
6.0
Min. pneumatic operatingpressure [bar]
5.0
Max. pneumatic operatingpressure [bar]
7.0
Pneumatic connection internal thread
M2.5 for hose ø4/2 mm
Fastening thread
M4
Weight [kg]
0.50
Unused, in original package, with accessories.
Technical Data
Dosing range [cm3]
0.001 - 0.020
Lubricants up to NLGI 3 / max. 1'000'000 mPa.s
Min. / max. workingpressure medium inlet [bar]
20/200
Connection medium inlet internal thread
1/8'' BSP
Connection medium inlet external thread
1/8'' BSP
Connection medium outlet internal thread
M5 / With Dispensing Tip Adapter LUER-Connection
Compressed air quality
ISO 8573-1:2020 [6:4:4]
Optimum pneumatic operatingpressure [bar]
6.0
Min. pneumatic operatingpressure [bar]
5.0
Max. pneumatic operatingpressure [bar]
7.0
Pneumatic connection internal thread
M2.5 for hose ø4/2 mm
Fastening thread
M4
Weight [kg]
0.50
- Prezzo CHF
- 900.-
- CAP
- 1786
